SSV PIPING INDUSTRIES is manufacturer of HDPE Sprinkler Systems. These Pipes are constructed with high-quality Raw materials. These Pipes are in high demand and well received by customers because they have characteristics such as High Flexibility and Durability. These are available to customers based on their requirements.
Sprinkler irrigation is the method of applying water in a controlled manner that is similar to rainfall. The water is distributed through a network that may consist of pumps, valves, pipes, and sprinklers. In addition, Irrigation sprinklers can be used for residential, industrial, and agricultural usage. In a similar war, Sprinklers provide efficient coverage for small to large areas and are suitable for use on all types of properties. It is also adaptable to nearly all irrigable soils because sprinklers are available in a wide range of discharge capacities. Alex Sprinkler Pipes are manufactured from High-Density Polyethylene Polymers i.e. PE 63
Sprinkler Pipe is simple and safe to use. Seasonal and Permanent Planting options are available. It is constructed of Virgin Plastic. It has Leak Proof Joints.We have a large selection of HDPE Sprinkler Pipe and Fittings that are designed by Several IS Standards. These Pipe and Fittings which come in a variety of Sizes and Dimensions, are primarily used for Water Conservation. Because they are precision, designed and Pressure-resistant. These Pipes and Fittings save water and are thus ideal for use in Agriculture and Farming.
SPECIFICATIONS:
High quality Sprinkler Pipes are manufactured as per Specification No. IS: 17425 : 2020 (Part-1& Part-2) of the Bureau of Indian Standards.
RAW MATERIAL USED:
Pipes are manufactured from High Density Poly Ethylene Polymers which is confirm to designation of PEEWA-45-T-006 & PEEWA-45-T-012 of IS 7328. The material grades that have been used is PE 63.
PRODUCT RANGE:
MAYUR SPRINKLER PIPES are available in 63 mm to 110 mm outer diameter and Pressure ratings from 2.5 kg/cm2 to 6 kg/cm2(Class-1, Class-2, Class-3, Class-4) The pipe length excluding coupler attachment shall be either 3 or 6 meters.
FEATURES:
MAYUR SPRINKLER PIPES are known for
• High performance system
• Easy to use
• Leak- proof joints
• Portable, light weight and flexible
• Chemically inert and suitable to use with liquid fertilizer and pesticides
• Easy handling and quick installation by using quick coupler joints for both pies as well as fittings
• High resistance to corrosion
• Ideal for seasonal and permanent farming
• Eliminate the water loss by providing a reliable seal with sealing system
• Cost effective, long lasting and maintenance free
APPLICATIONS:
• Agriculture use
• Irrigation use

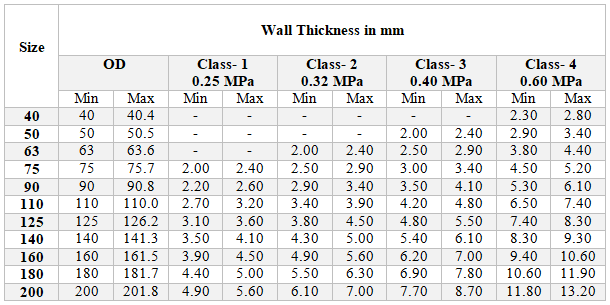

SPRINKLER PIPE DIMENSION CHART (As per IS 14151)
