We offer a PE Gas Pipe that is not only simple to install but also has cheap installation and maintenance costs. Furthermore, because it is long-lasting and resilient, it saves money on replacement costs in the long run. PE is a fantastic choice for electrical installation because it is non-flammable and non-combustible. A PE Gas Pipe also requires little to no maintenance. It is inexpensive to ship and simple to set up. This pipe is not only efficient and safe to use, but it is also cost-effective
HDPE and MDPE pipes are globally accepted because of their lightweight, durability, corrosion resistance, leakage-proof and flexible structure. And that's why these pipes are used as gas pipes natural gas, biogas, LPG and so on. MDPE pipes have been used extensively as gas pipes since 1960. Over 90% of the gas conveyance pipes are either MDPE or HDPE. PE pipes have been used globally for gas conveyance as they are safe, feasible, leak-proof and easy to install. Today, more than 70% of the pipe installed for natural gas distribution in Europe, US and other part of the world is polyethylene. In fact, PE has become the material of choice for gas distribution worldwide. Design engineers assume that PE piping networks will provide safe and reliable service for more than a design targeted life of 50 years. The industry is approaching that 50-year milestone of use.
SPECIFICATIONS:
GAS Pipes are manufactured as per IS: 14885:2022 and ISO: 4427 standard specifications with latest amendment. Material Grades PE 80 (Yellow), PE 100 (Orange).
RAW MATERIAL USED:
Pipes are manufactured from PE Compound which is Cadmium free pigmented compound like High and Medium Density Poly Ethylene Polymers. The different material grades that have been used are PE 80 and PE 100.
PRODUCT RANGE:
MAYUR PE GAS PIPES are available up to 200 mm outer diameter and Pressure ratings from SDR 17.6- SDR 9. Length of pipes is as per requirements in coil and larger diameter pipes are available in fixed length of 3 to 12 meters.
FEATURES:
MAYUR PE GAS PIPES and Coils are known for
• Light weight, Flexible and Durable
• Outstanding ability to withstand rapid crack propagation
• Resistance to crack, chemical, corrosion, rusting, etc.
• Very high abrasion resistance
• Minimum maintenance cost
• Non- flammable and non- combustible material
• Easy handling and joining leading to reduce cost
APPLICATIONS:
• Natural gas, Vaporized LPG conveyance and distribution
• Industrial gas distribution
• Biogas and propane gas distribution
• City gas distribution
• Domestic and industrial PNG Distribution
• Landfill & Leachate Gas extraction and conveyance

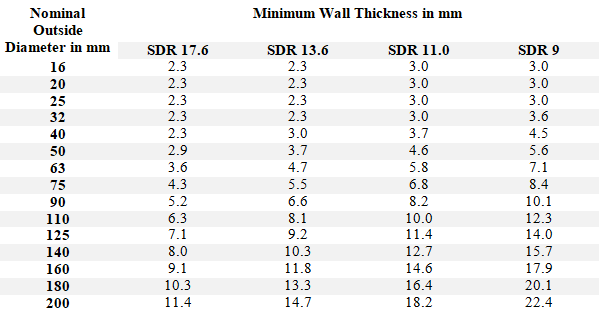

PE GAS PIPE DIMENSION CHART (As per IS 14885:2022)
