We have been offering a wide range of HDPE PLB Duct Pipes and Fittings such as pipe conduits, pipe ducts, HDPE Conduits, and PLB HDPE Ducts, that are manufactured from virgin Quality Raw Materials sourced from reliable vendors across the globe. Similarly, these pipe conduits, pipe ducts, HDPE conduits, and PLB HDPE Ducts are manufactured according to various Indian as well as International standards or can be customized as per the specifications of our clients.

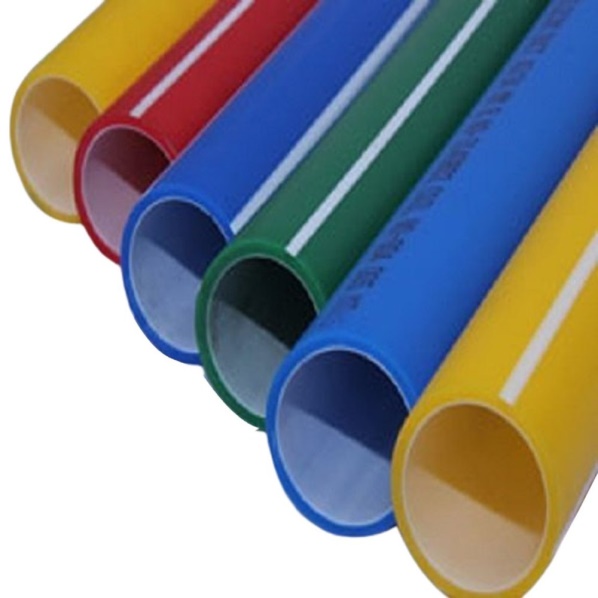

HDPE PLB Duct Pipes or High Density Polyethylene Permanently Lubricated Ducts are the high flow capacity ducts, which offer a very high quality option for the underground laying of optical fiber cable (OFC). These PLB HDPE Ducts are mainly used for the purpose of laying Optical Fiber Cable as underground conduits. The PLB Ducts are regarded with the bright future since the material in use, high density Polyethylene has several advantages.
SPECIFICATIONS:
High quality HDPE Pipes are manufactured as per ISO 9001:2016 and TEC Specifications (GR NO. TEC/GR/FA/CDS-008/04/AUG-19 WITH LATEST AMENDMENTS)
RAW MATERIAL USED:
Pipes are manufactured with the superior grade of High-Density Polyethylene materials. HDPE pipes manufactured meets all the requirements of TEC Specifications as well as IS 4984-2016 Colour- Yellow, Orange, Green, Blue, Brown, grey, violet, Red and as per customer requirement.
PRODUCT RANGE:

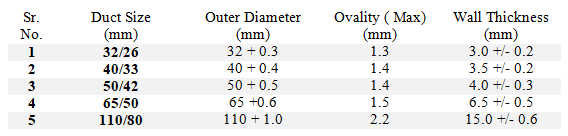

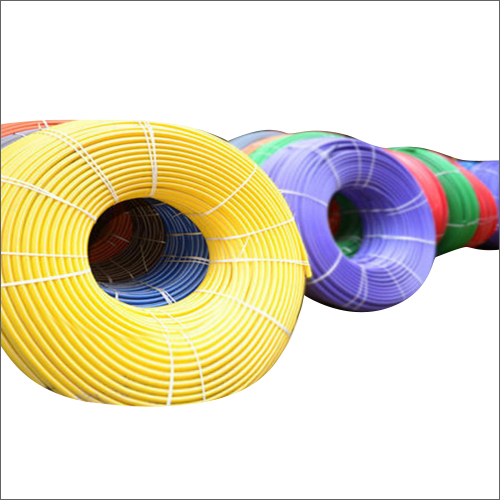

MAYUR HDPE PLB DUCT PIPES are available in 32/26 mm, 40/33 mm, 50/42 mm, 65/50 mm, 110/80 mm. Length of pipes is as per requirements in coil (50 mtr-1000 mtr)
FEATURES:
• Environment Stress Crack Resistance (ESCR), Impact Resistance, Crush Resistance, Temperature Resistance, Ultraviolet (UV) protection
• Low weight makes installation of longer lengths speedy with lesser manpower
• Low Coefficient of Friction
• It has no toxic or dramatic hazards for safe handling
• Easy maintenance and future upgrades
• Negotiations of cable movement through bends and deflections are easier
• Less number of joints makes it easy for cable insertion
APPLICATIONS:
• PLB Duct Pipes are used as underground cable conduits for laying optical fiber cables, communication cables etc. & are suitable for cable installation by blowing or pulling by rope techniques.
• PLB Ducts are suitable for Telecommunication, Computer Network, Automatic Signalling, Railways Information Network, Highways, Cable Service Providers, Broad Band networks, Electric cable installation etc.
• Solar and security cables
• Electrical cable installation
