We manufacture supreme quality HDPE pipes with highly technical manpower, in-house laboratories, testing and research facilities, 100% use of virgin raw material, black & blue Masterbatch. MAYUR HDPE PIPE are the No 1 quality you can trust. MAYUR HDPE PIPE are strong, durable and cost effective solution for potable water supply, Irrigation, Bore well, Sprinkler, cable Ducting, Sewerage/ Drainage applications. They are also useful in chemical/ processing industries, telecommunications, vegetable oils, fruit juices, dairies and other liquid and semi liquid conveyances and flow applications. MAYUR HDPE PIPE have the lowest repair frequency per Kilo metre of pipe per year compared with all other pipe materials used for urban& Rural areas water and gas distribution.
When you place pipes below or above the ground, you want to be sure that they are made from the best raw materials with the highest quality standards, which is important that it is a trustable brand like MAYUR HDPE PIPE, manufactured by SSV PIPING INDUSTRIES. So, you are able to get reliable, smooth irrigation for your field without any surprises below or above the ground.
MAYUR HDPE PIPE has approved by several government authorities, such as the Rural Drinking Water Supply and Drainage Board, Maharashtra Jal Pradhikaran, BIS, etc.
SPECIFICATIONS:
High quality HDPE Pipes are manufactured as per Specification No. IS: 4984: 2016 of the Bureau of Indian Standards.
RAW MATERIAL USED:
Pipes are manufactured from High Density Poly Ethylene Polymers. The different material grades that have been used are PE 63, PE 80 and PE 100.
PRODUCT RANGE:

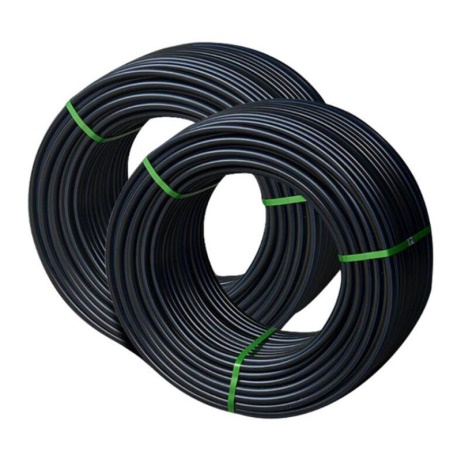

MAYUR HDPE PIPES are available in 20 mm to 200 mm outer diameter and Pressure ratings from 2.5 kg/cm2 to 20 kg/cm2. Length of pipes is as per requirements in coil and larger diameter pipes are available in fixed length of 6 meters.
FEATURES:
MAYUR HDPE PIPES and Coils are known for
• Long Life and Durable
• Low Maintenance Cost
• Tough and Strong
• Light weight
• Flexibility and Perfect Weld Ability
• Smooth inner surface
• Good Weathering Resistance
• Abrasion and Wear Resistant
• Good Chemical Resistance
• Non Hazardous and corrosion Resistance
• Low Thermal Conductivity& High Electrical Resistance
APPLICATIONS:
1. WATER SUPPLY AND DISTRIBUTION SYSTEM
• In water supply distribution systems.
• As a replacement of GI Pipes in Bore Well application of submersible pumps.
• For suction and delivery lines of jet pumps and centrifugal pumps.
2. AGRICULTURE
• Lift/ flow irrigation
• Submersible pump delivery lines
• Suction & delivery of pumps
• Multi irrigation system
3. HYDRO TRANSPORT SYSTEM
• HDPE Pipes are used for transporting slurries of Iron Ore, Fly Ash etc.
• Diffusers, Outfalls and Dredging Applications.
• Coal & Cement handling.
4. INDUSTRIAL APPLICATION:
• HDPE pipes can be used for disposal of corrosive effluents chemicals and treated / untreated wastes.
• For conveying edible oils, fruit pulps, juices, milk and other food products.
• As ducts for Air Conditioning and Ventilation.
• Acids and Alkalis can be transported through these pipes.
• Electric Installations
5. ENVIRONMENTAL PROTECTION
• HDPE Pipes are used for industrial waste treatment plants and water treatment plants.
• For drainage of Sewerage.
• For disposal of sand slurry in dredging operations.
6. DOMESTIC APPLICATION:
• Portable water supply
• Lift irrigation and Farm irrigation schemes
• Rising main & Distribution network for raw/ filtered water
• Chilled water circulation
• Temporary water system like water lines, drought relief and flood relief

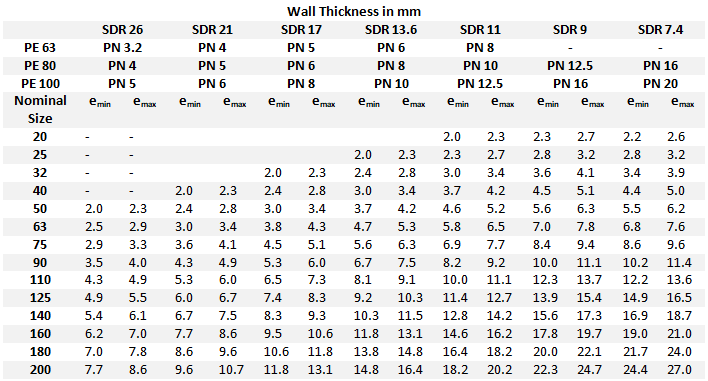

HDPE PIPE DIMENSION CHART (As per IS 4984: 2016)
